Drip Irrigation Tape Manufacturer for Custom Water-Saving Irrigation Solutions
ZNY Agri manufactures PE drip irrigation tape and dripline solutions for agricultural importers, irrigation distributors, greenhouse projects and commercial farms. Our range includes flat drip tape, labyrinth drip tape, cylindrical dripline and anti-clog irrigation configurations. Common specifications include 12–22 mm diameters, 0.15–0.6 mm wall thickness, 10–50 cm emitter spacing and 1–8 L/h flow rates. Working pressure, UV resistance and service life can be matched to seasonal crops, greenhouses, orchards or longer-term irrigation systems. OEM and ODM support covers structure, spacing, flow, thickness, roll length, color, packaging and private-label requirements.
DRIP IRRIGATION TAPE SOLUTIONS

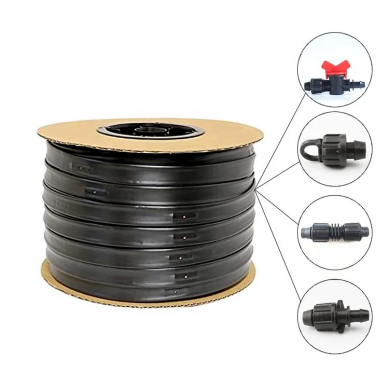

Drip irrigation tape is a low-pressure irrigation product designed to deliver water and nutrients slowly and consistently near the crop root zone. Flat drip tape uses inserted emitters for controlled flow and is widely used in greenhouse and field irrigation. Labyrinth drip tape forms the flow channel directly in the tape wall and is commonly selected for cost-sensitive seasonal applications. Cylindrical dripline uses a thicker pipe structure for orchards and longer-term systems. Buyers should compare wall thickness, diameter, emitter spacing, flow rate, working pressure, flow uniformity, anti-clogging design, UV resistance and expected service life before selecting a specification.
IRRIGATION TAPE MANUFACTURING
Production begins with PE resin, UV stabilizers, antioxidants and color masterbatch mixed according to the required outdoor life and mechanical performance. The material is extruded into a tape or pipe structure, after which flat emitters are inserted or a labyrinth flow path is formed according to the selected product type. Cylindrical emitters can be integrated into thicker dripline for longer-term irrigation. The product is then cooled, perforated, wound and packed. Process control focuses on wall-thickness consistency, emitter spacing, outlet accuracy, flow rate, pressure behavior, winding quality and leakage resistance. Sampling requirements can include flow-uniformity, pressure, tensile and UV-weathering checks.
APPLICATION SOLUTIONS
Suitable for tomatoes, cucumbers, peppers and leafy vegetables that require controlled root-zone irrigation and fertigation. Diameter, wall thickness, emitter spacing and flow rate can be matched to bed length, planting density and greenhouse pressure conditions.

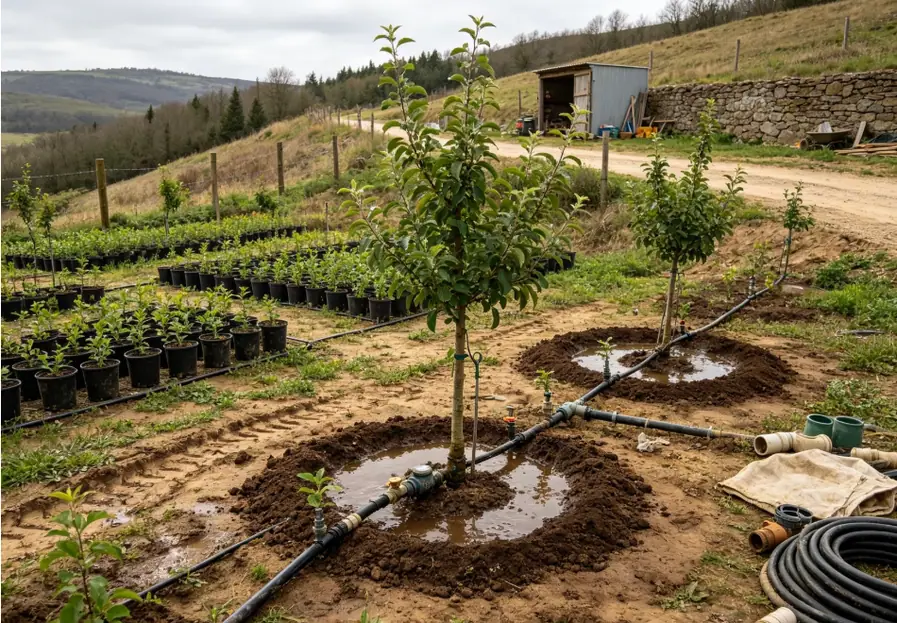

Designed for fruit trees and grapevines where stable long-line flow, stronger wall thickness and longer outdoor service life are important. Cylindrical dripline or thicker flat-emitter products can be evaluated according to terrain and irrigation duration.
Provides targeted irrigation for strawberries, watermelon and muskmelon while helping reduce unnecessary wetting between rows. Closer emitter spacing and lower flow options can be selected according to plant spacing, soil type and seasonal water demand.
Supports large-area irrigation programs that require efficient installation, predictable roll performance and economical seasonal use. Labyrinth or flat drip tape can be selected according to field length, filtration, pressure and crop spacing.
Suitable for nursery beds, flowers and horticultural production where controlled water and fertilizer delivery helps maintain a more consistent root environment. Flow, spacing and pressure should be adapted to container layout, growing media and irrigation zones.
BUYER FEEDBACK
Middle Eastern Market
European Market
International Market
COOPERATION PROCESS
Share your target market, crop application, irrigation layout and purchasing plan so the sales team can prepare a relevant specification recommendation.
Confirm tape type, diameter, wall thickness, emitter spacing, flow rate, working pressure, roll length, UV life, packaging and estimated quantity.
Compare labyrinth tape, flat drip tape, anti-clog configurations and cylindrical dripline according to performance, service life, budget and market positioning.
Arrange available samples or a specification sample to review dimensions, emitter spacing, outlet quality, flexibility, winding and packaging presentation.
Evaluate flow rate, uniformity, pressure behavior, filtration compatibility and installation performance under your own field or laboratory conditions.
Approve the final specification, quantity, private-label packaging and shipping details, then proceed with production, inspection and order execution.
FREQUENTLY ASKED QUESTIONS
What types of drip irrigation tape and dripline do you manufacture?
We manufacture flat drip tape, labyrinth drip tape, anti-clog drip irrigation configurations and cylindrical dripline. Flat drip tape uses inserted emitters and is widely selected for greenhouse, vegetable and field irrigation because it can provide controlled emitter spacing and stable flow. Labyrinth tape forms the flow channel directly in the tape wall and is commonly used for economical seasonal irrigation. Cylindrical dripline uses a thicker pipe structure and is more suitable for orchards, vineyards and longer-term systems. The appropriate type depends on crop cycle, line length, water quality, filtration, working pressure, terrain and expected service life.
What diameter, wall thickness, emitter spacing and flow rate can I order?
Common diameters range from 12 to 22 mm, with 16 mm being a widely used specification. Wall thickness commonly ranges from 0.15 to 0.6 mm. Typical emitter spacing options include 10, 20, 30, 40 and 50 cm, while common flow rates range from 1 to 8 L/h. Working pressures can include approximately 0.6, 0.8, 1.0 and 1.5 bar depending on the product structure. The correct combination should be selected according to crop spacing, soil infiltration, field length, water demand, installation method and whether the product is intended for one season or multiple years.
How do I reduce clogging and uneven water flow?
Anti-clogging performance depends on the emitter flow-path design, water quality, filtration, operating pressure, line length and system maintenance. A wider or self-cleaning flow channel can improve resistance to particles, but it cannot replace correct filtration. Buyers should confirm the water source, sediment level, fertilizer use and required flushing method before selecting a tape. Flow uniformity also depends on pressure stability and the relationship between line length, diameter, emitter spacing and flow rate. A product with an unsuitable specification can still irrigate unevenly even when the tape itself is manufactured correctly.
How is drip irrigation tape quality evaluated?
Important quality checks include PE raw-material consistency, wall-thickness uniformity, diameter, emitter spacing, outlet formation, nominal flow rate, flow variation, pressure resistance, tensile behavior, leakage, winding quality and UV-weathering performance. ISO 9261 is a key reference for emitters and emitting pipe performance, including flow and pressure characteristics. Other references may include ISO 9644 for pressure-loss testing, ISO 8796 for pressure behavior, ASTM D2241 or ASTM D2412 for pipe-related performance, and ISO 4892 or ASTM G154 for accelerated weathering. The final inspection plan should match the product structure and buyer requirements.
Do you provide OEM, ODM, samples and private-label packaging?
Yes. OEM and ODM services can cover tape or dripline structure, diameter, wall thickness, emitter spacing, flow rate, working pressure, UV stabilization, color, roll length, labels, PE wrapping, cartons and pallet packaging. Samples can be arranged so buyers can review dimensions, flexibility, emitter placement, flow behavior, winding and packaging before placing a formal order. Sample availability, minimum order quantity and production time depend on the selected structure, tooling, emitter specification, roll length and packaging. These details are confirmed during quotation so each proposal reflects the actual irrigation application rather than a generic product description.
Do you support distributors, agents and regional supply from Kenya?
We welcome cooperation with irrigation-equipment importers, agricultural distributors, greenhouse suppliers, farm-project contractors and regional agents. For East African customers, selected drip tape specifications may be supported through our warehouse in Kenya, subject to current inventory, roll configuration and order requirements. Other customized drip tape and dripline orders can be produced and shipped from China according to the confirmed manufacturing and logistics plan. Agency discussions can cover target territory, crop markets, product range, private-label packaging, technical support expectations and estimated annual demand.
How is drip irrigation tape quality evaluated?
Important quality checks include PE raw-material consistency, wall-thickness uniformity, diameter, emitter spacing, outlet formation, nominal flow rate, flow variation, pressure resistance, tensile behavior, leakage, winding quality and UV-weathering performance. ISO 9261 is a key reference for emitters and emitting pipe performance, including flow and pressure characteristics. Other references may include ISO 9644 for pressure-loss testing, ISO 8796 for pressure behavior, ASTM D2241 or ASTM D2412 for pipe-related performance, and ISO 4892 or ASTM G154 for accelerated weathering. The final inspection plan should match the product structure and buyer requirements.
Do you provide OEM, ODM, samples and private-label packaging?
Yes. OEM and ODM services can cover tape or dripline structure, diameter, wall thickness, emitter spacing, flow rate, working pressure, UV stabilization, color, roll length, labels, PE wrapping, cartons and pallet packaging. Samples can be arranged so buyers can review dimensions, flexibility, emitter placement, flow behavior, winding and packaging before placing a formal order. Sample availability, minimum order quantity and production time depend on the selected structure, tooling, emitter specification, roll length and packaging. These details are confirmed during quotation so each proposal reflects the actual irrigation application rather than a generic product description.
Do you support distributors, agents and regional supply from Kenya?
We welcome cooperation with irrigation-equipment importers, agricultural distributors, greenhouse suppliers, farm-project contractors and regional agents. For East African customers, selected drip tape specifications may be supported through our warehouse in Kenya, subject to current inventory, roll configuration and order requirements. Other customized drip tape and dripline orders can be produced and shipped from China according to the confirmed manufacturing and logistics plan. Agency discussions can cover target territory, crop markets, product range, private-label packaging, technical support expectations and estimated annual demand.
